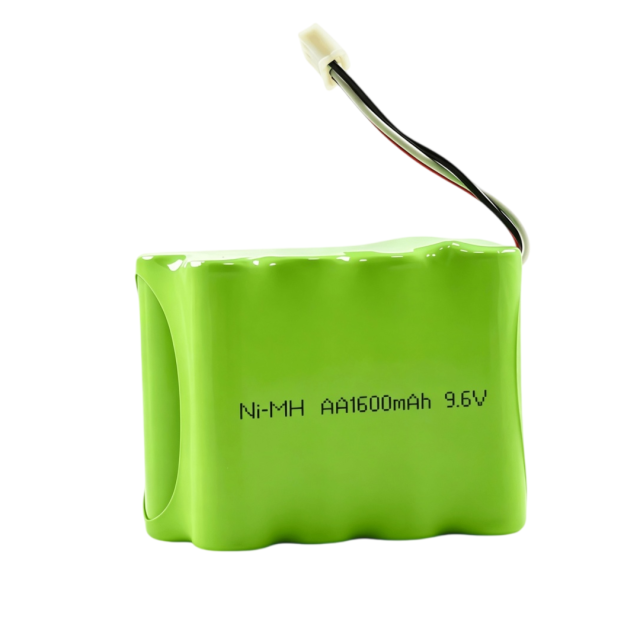

9.6V AA 1600mAh Ni-MH Rechargeable Battery Pack

Q: What is cycle‑life of this 9.6V AA 1600mAh Ni‑MH pack?

≥500 cycles tested following IEC61951‑2:2017 standard under 0.2C charge‑discharge test conditions for assembled battery pack.

Q: What is total internal resistance for 9.6V AA1600mAh battery pack?

≤280mΩ for whole assembled pack, measured at 1KHz AC under fully‑charged status.

Q: Can you customize wires, connectors and heat‑shrink housing for this 9.6V AA pack?

Yes. We support custom lead wires, JST/SM/KET/Tamiya connectors, heat‑shrink tube wrapping and polarity adjustment for OEM projects.

Q: What certificates can you provide for export of 9.6V AA Ni‑MH battery packs?

PPWR, CE, RoHS, REACH, MSDS and UN38.3 shipping documents can be supplied for global export orders.

Q: Are samples available for 9.6V AA 1600mAh Ni‑MH battery pack?

Samples can be arranged for performance validation, buyer shall cover the freight cost.

Description

Full Technical Specifications (WJ‑PACK‑8S‑AA1600)

Parameter Item	Specification
Model Number	WJ‑PACK‑8S‑AA1600
Nominal Voltage	9.6V (8pcs 1.2V AA Ni‑MH cells in series)
Rated Capacity	1600mAh (Minimum 1550mAh)
Nominal Energy	15.36Wh
Cell Configuration	8S‑1P (Eight standard AA Ni‑MH 1600mAh cells series‑welded)
Single Cell Dimension (D×H)	Φ14.1mm × 50.0mm
Pack Approx Weight	Approx 190g (without connector)
Whole‑Pack Internal Resistance (1kHz, full charged)	≤280 mΩ
IEC Cycle Life	≥500 cycles (IEC61951‑2:2017)
Max Continuous Discharge Current	1600mA (1C)
Standard Charge	160mA (0.1C), 16 hours
Fast Charge	480mA‑800mA with ‑ΔV / temperature cut‑off control
Discharge Temperature Range	-20℃ ~ +50℃
Short‑term Storage Temperature (<30 days)	-20℃ ~ +45℃
Pack Cut‑off Discharge Voltage	8.0V (1.0V per single cell)
28‑day Self‑discharge Retention	≥60% capacity @20℃ ambient
Certifications & Shipping Documents	PPWR, CE, RoHS, REACH, MSDS, UN38.3 available

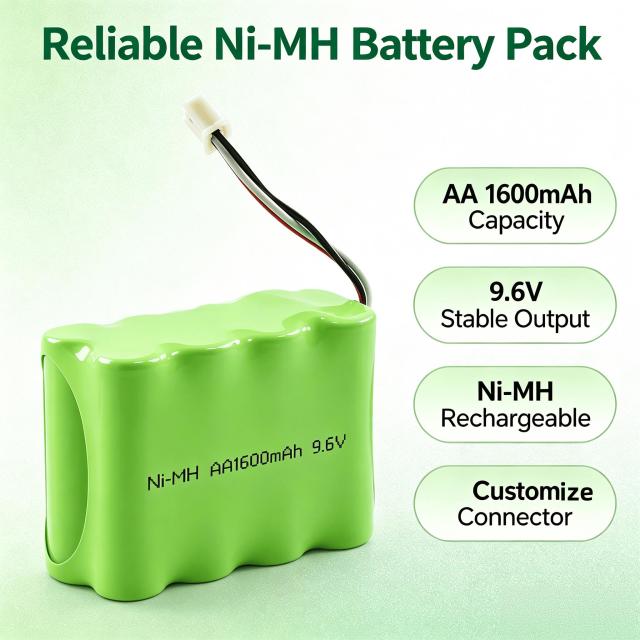

Core Performance Advantages

≥500 IEC standard cycles: Assembled from grade‑A WJ‑H‑AA1600 low‑self‑discharge cells, pass IEC61951‑2‑2017 cycle test for RC hobby and portable industrial equipment.
8S series 9.6V finished AA battery pack: Factory spot‑welded eight AA‑1600mAh low‑self‑discharge cells, stable 9.6V rated output for RC models and replacement‑device projects.
Strict cell matching process: Capacity, internal‑resistance and open‑circuit voltage sorted before spot‑welding, minimize voltage drift under continuous‑load working conditions.
Low self‑discharge characteristic: Adopt low self‑discharge AA1600mAh cells, maintain good capacity retention for intermittent‑use equipment.
Wide working temperature: Discharge range from‑20℃ up to +50℃, fit indoor equipment and mild outdoor operating scenarios.
Flexible OEM options: Custom flying leads, Tamiya/JST/SM/KET connectors, heat‑shrink sleeve wrapping, polarity adjustment and private label printing.

Performance Characteristic Curves

1.0C Rate Charging Curves

0.1C‑1.0C Multi‑Rate Charging Curves

0.2C / 0.5C / 1C Discharging Curves

Storage & Self‑Discharge Retention Curves

OEM Custom Battery‑Pack Service

We provide OEM & ODM finished‑pack assembly service for WJ‑PACK‑8S‑AA1600 9.6V Ni‑MH battery. We support grade‑A low‑self‑discharge cell sorting, spot‑weld inter‑cell tabs, different gauge flying leads, multiple industry‑standard connectors (Tamiya, JST‑PH, SM, KET), heat‑shrink tube insulation, custom polarity and private label printing. Suitable for RC‑model replacement, portable instrument upgrade and new‑product‑development projects.

9.6V AA Ni‑MH battery pack assembly and QC workflow

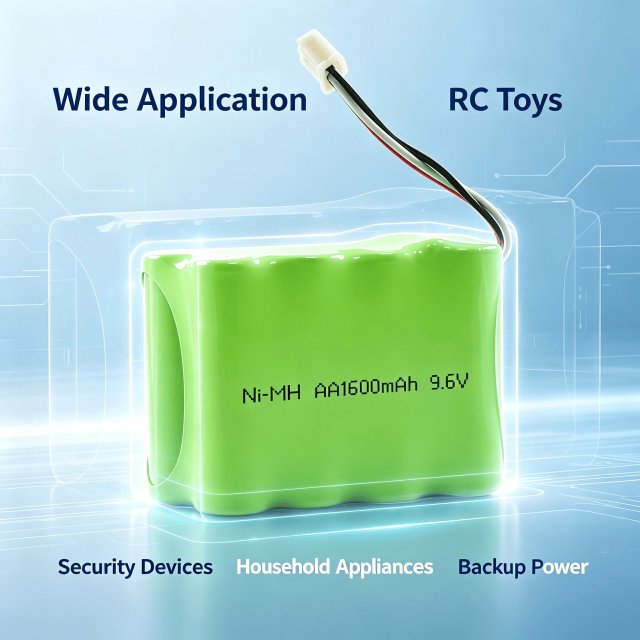

Typical Application Scenarios

This 9.6V AA 1600mAh low‑self‑discharge series Ni‑MH battery pack is widely applied for RC hobby models, portable test instruments, industrial handheld devices, robot equipment and portable standby power units.

RC car & hobby model power packs Portable test measuring instruments Hand‑held industrial devices Small robot equipment Portable emergency lighting Portable industrial control modules

Frequently Asked Questions

Q1: What is cycle‑life of this 9.6V AA 1600mAh Ni‑MH pack?

A: ≥500 cycles tested following IEC61951‑2:2017 standard under 0.2C charge‑discharge test conditions for assembled battery pack.

Q2: What is total internal resistance for 9.6V AA1600mAh battery pack?

A: ≤280mΩ for whole assembled pack, measured at 1KHz AC under fully‑charged status.

Q3: Can you customize wires, connectors and heat‑shrink housing for this 9.6V AA pack?

A: Yes. We support custom lead wires, JST/SM/KET/Tamiya connectors, heat‑shrink tube wrapping and polarity adjustment for OEM projects.

Q4: What certificates can you provide for export of 9.6V AA Ni‑MH battery packs?

A: PPWR, CE, RoHS, REACH, MSDS and UN38.3 shipping documents can be supplied for global export orders.

Q5: Are samples available for 9.6V AA 1600mAh Ni‑MH battery pack?

A: Samples can be arranged for performance validation, buyer shall cover the freight cost.

Manufacturer & Certification Support

Weijiang Power manufactures this 9.6V AA Ni‑MH assembled battery pack with grade‑A original WJ‑H‑AA1600 low‑self‑discharge Ni‑MH cells. In‑house cell‑sorting, spot‑welding and reliability‑testing laboratory support mass‑production and small‑batch OEM customization. Full set export‑ready certification & shipping documents for worldwide customers.
